E-Field Probe Calibration Services – Precision You Can Trust
At Bquest Labs Pvt. Ltd., we offer ISO 17025 accredited by NABL for E-Field Probe testing services, providing high-accuracy electromagnetic field (EMF) measurements for compliance with global standards. Our facility is equipped with advanced testing equipment and state-of-the-art E-Field Probes to cover frequency ranges from 1 MHz to 18 GHz and field strengths from 2 V/m to 500 V/m. Whether you need to assess radiated emissions or immunity levels for electronic devices, our testing services are designed to meet the highest standards, ensuring your products comply with regulatory requirements across various industries.
What is an E-field Probe Calibration?
An E-field probe (Electric Field Probe) is a specific instrument which measures electric field strength in a broad range of environments. E-field probes are used across aerospace, defense, telecom/aerospace and medical device testing environments, along with any other testing platform with EMI (Electromagnetic Interference) controlled applications. Like some other precision measurement instruments, E-field probes can drift over time, so can require a solution for regular calibration to ensure the measurements are appropriate.
Why is E-field Probe Calibration Important
Calibrating an E-field probe ensures:- Accurate electric field measurements
- Compliance with industry and regulatory standards (like CISPR, MIL-STD, ISO, etc.)
- Minimized risk of test errors or product non-compliance
- Improved reliability and credibility of test data
At BQuest Labs, we offer traceable E-field probe calibration services backed by national and international standards. Our advanced calibration methods ensure your instruments are performing within specified tolerances and operating at optimal efficiency.
Our Electric Probe Calibration Process
At BQuest Labs, we follow a meticulous and standardized process to calibrate E-field probes:- Initial Inspection & Functional Testing We start by performing a thorough visual inspection and functional check to identify any physical damage or performance issues.

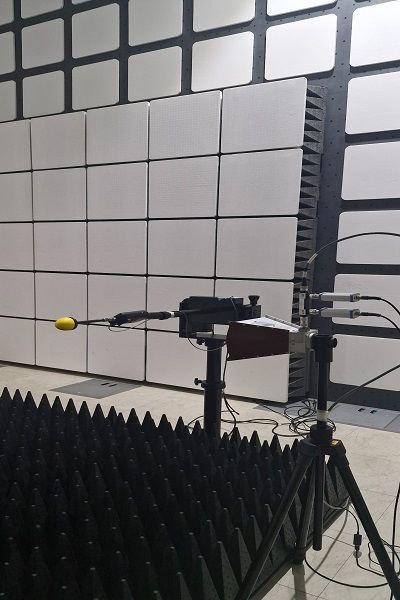

- Setup in Anechoic or TEM Environment Calibration is performed in a controlled electromagnetic environment such as a TEM cell or anechoic chamber to eliminate external interference.
- Application of Known Field Strengths Known electric field strengths are applied across multiple frequencies and probe orientations. This allows for calibration across the probe's entire operational bandwidth.
- Comparison with Reference Standards The probe’s output is compared with highly accurate reference field sensors traceable to national metrology institutes (e.g., NIST).
- Adjustment & Certification If deviations are found, adjustments are made, and a comprehensive calibration certificate is issued, detailing the measurement results and uncertainties.
Key Features of BQuest Labs' E-field Probe Calibration:
- Accredited to ISO 17025 by NABL: Offering reliable, standardized testing backed by international recognition.
- Frequency Range: 1 MHz to 18 GHz, covering a wide spectrum of electromagnetic emissions and radiated immunity tests.
- Field Strength Range: 2 V/m to 100 V/m for standard tests and up to 500 V/m with TEM Cell testing, ensuring comprehensive measurement capabilities.
- TEM Cell Capabilities: Use of TEM Cell (80 MHz to 400 MHz) for precise immunity and emission tests in the range of 2 V/m to 500 V/m.
- Multiple Configurations: From standard probes to specialized TEM Cells, we tailor our testing setups to meet your exact requirements.
- Full Compliance Testing: Adherence to international EMC standards such as CISPR 16, IEC 61000, and IEEE 1309.
E-Field Probe Testing: What We Measure
Our E-Field Probe testing services measure electromagnetic fields emitted by devices or components in a controlled environment. The probes are used for both radiated emission and radiated immunity tests, ensuring that your products meet industry-specific regulations.1. Radiated Emissions Testing
- Frequency Range: 1 MHz to 18 GHz
- Field Strength: 2 V/m to 100 V/m
- Application: Ideal for assessing the electromagnetic compatibility (EMC) of consumer electronics, automotive components, and communication devices.
2. Radiated Immunity Testing
- Frequency Range: 1 MHz to 18 GHz
- Field Strength: 2 V/m to 100 V/m
- Application: Simulates electromagnetic interference (EMI) that may affect the device’s operation in real-world conditions, ensuring durability and resilience.
3. TEM Cell Testing
- Frequency Range: 80 MHz to 400 MHz
- Field Strength: 2 V/m to 500 V/m
- o Application: Used for higher field strength tests, often required for automotive electronics or military-grade devices. The TEM cell enables uniform and precise electromagnetic field generation for testing large or sensitive DUTs (Device Under Test).
Industries We Serve for E-Field Probe Calibration
We provide E-field probe calibration for clients in:- Automotive: Ensuring automotive components, infotainment systems, and ADAS meet EMC standards.
- Telecommunications: Ensuring mobile devices, network equipment, and 5G systems perform without EMI-related issues.
- Consumer Electronics: Testing for compliance with CISPR 32 and FCC Part 15 for products like smartphones, laptops, and wearable devices.
- Medical Devices: Ensuring radiated immunity and emission compliance for medical equipment and health monitoring systems.
- Industrial Equipment: Evaluating EMI emissions in equipment like robotic systems, PLC controllers, and automated machinery.
- Aerospace & Defense: Performing critical tests on aviation electronics, military devices, and communication systems to ensure performance in demanding environments.
BQuest Labs can ensure that your E-field measurement equipment stays calibrated for reliable and consistent results, regardless of whether it is compliance testing, R & D testing, or pre-compliance testing.
Why Choose Bquest Labs for E-Field Probe Testing?
- ISO 17025 Accreditation: Our ISO 17025 accreditationfrom NABL ensures that all testing procedures are carried out in compliance with international standards, guaranteeing high-quality, reliable results.
- Expert Testing Team: With years of expertise in EMC testing, our professionals ensure that your devices meet the stringent EMC regulations for both commercial and industrial applications.
- Comprehensive Reporting: You will receive detailed test reports, including graphical representations and quantitative data, with analysis to determine compliance with CISPR, IEC, FCC, and other standards.
- Fast Turnaround: We offer quick and efficient test execution to keep your product development timeline on track.
- Flexible Test Configurations: Our facility allows for customized test setups based on specific product requirements.
