E-field Probe Calibration

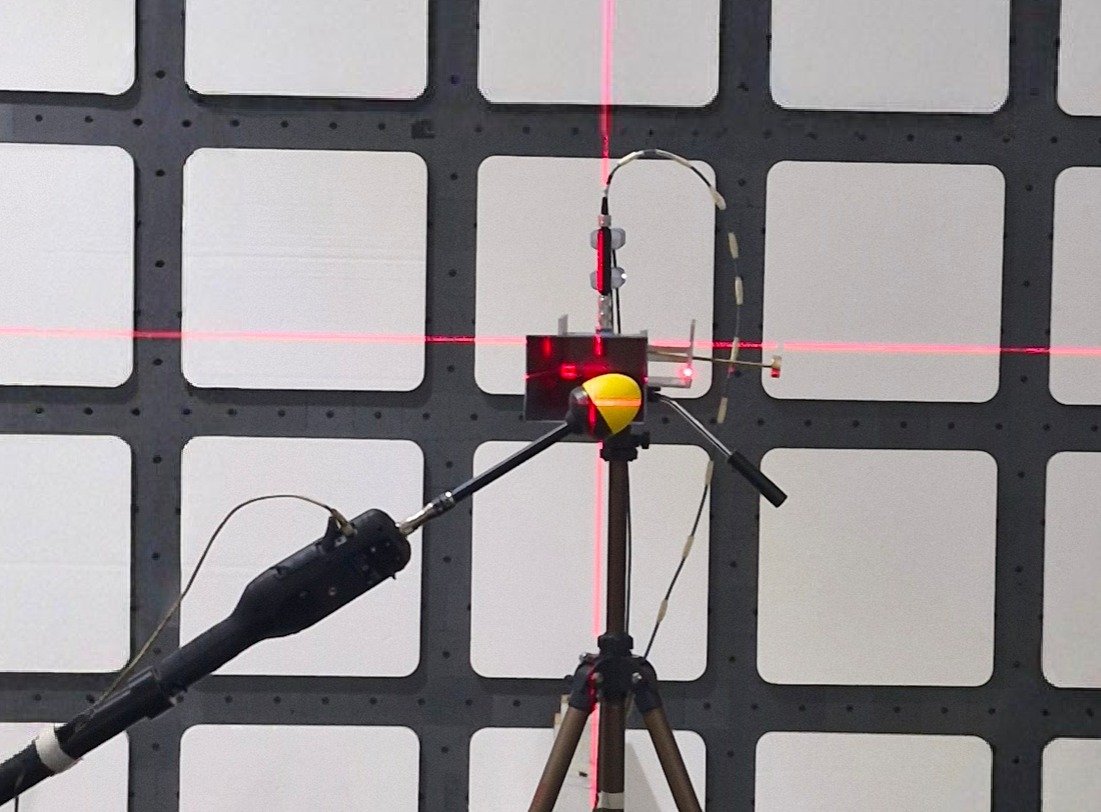

We carry out E-field probe calibration within a frequency range of 8 kHz to 18 GHz. Our methodology includes measuring frequency response in all three probe orientations (X, Y, and Z) and assessing isotropy and linearity. This process adheres to the standard IEC61000-4-3.

Providing Electric Field Probe Calibration by the following standards:

• ❖ IEEE 1309:2013
• ❖ IEC 61000-4-3

The measured characteristics of electric field probes encompass:

• Linearity
• Frequency response
• Isotropy

Bquest Labs calibrate E-field probes in a maximum frequency range from 8 kHz to 18 GHz. The standard calibration level is 20 V/m but optionally E-field probes can be calibrated up to 250 V/m (8 kHz up to 6 GHz) and 100 V/m (6GHz up to 18 GHz).
